Automatic Pallet Strapping Machine PSC 703PLM

Please contact us for pricing and ordering information.


This manufacturer is the most successful worldwide in placing plastic strapping machines - and is streets ahead in terms of value and low after sales costs... a real issue in the UK that frequently becomes apparent only after a machine has been in use some time.  Click Here for more background information on Pallet strapping Machine Choices

Specification Brief:

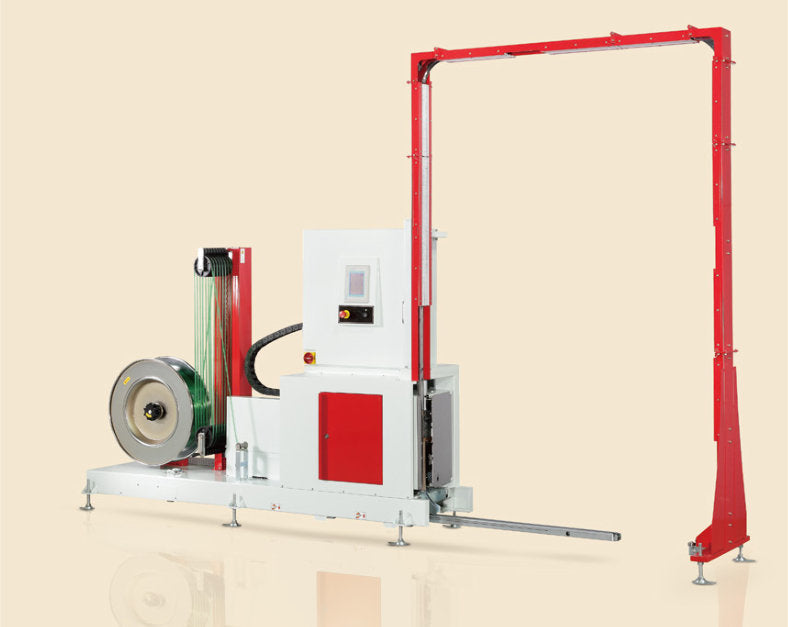

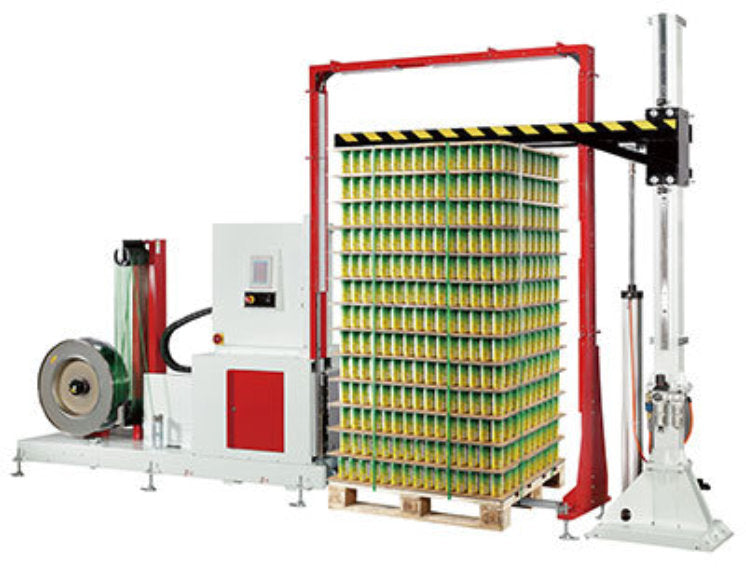

PS -703VLM is a fully automatic pallet strapping machine designed for vertical strapping. It secures palletized packages with PP or PET straps. The PS-703VLM pallet strapping machine can accommodate a wide variety of products and be easily integrated into new or existing production lines. With the user friendly and state-of-the-art design, PS-703VLM provides excellent packaging performance, greater production efficiency, and lower packaging cost.
  • Siemens PLC control and HMI
  • Index strapping head
  • Modular arch
  • Movable strap lance
  • Friction weld sealing technology
  • Adjustable sealing and cooling time


  • Floating head
  • Top press
  • Failure indicator
  • Free standing operation desk
  • Control panel on the opposite side
  • Strap dispenser in transport direction
  • Lower tension 200 – 1200 N (20 – 120 kg)
  • Index head stroke up to 700 mm
  • Light tree alarm with low strap sensor (triple lamp)
  • Control panel with switches instead of HMI

Different Models Available

  • PSC-703V with closed strap track, fixed strapping head
  • PSC-703VM with closed strap track, index strapping head
  • PSC-703VLM with movable lance, index strapping head


Technical Data

Strap Type  PP or PET straps
Strap Width  9 mm, 12 mm, or 15.5 mm
Capacity Up to 70 pallets/hour (vertically double-strapped)
(depends on package dimensions and arch size)
Tension Range  1100 - 3000 N (standard)
  200 - 1200 N (optional)
Strap Core Size  406 mm
Electrical Requirement  220V, 380V, 400V, 415V 50/60Hz 3PH
